I-Rof Electro-optic modulator 780nm LiNbO3 Intensity Modulator 10G

I-Rof Electro-optic modulator 780nm LiNbO3 Intensity Modulator 10G Isithombe Esifakiwe
  • I-Rof Electro-optic modulator 780nm LiNbO3 Intensity Modulator 10G
  • I-Rof Electro-optic modulator 780nm LiNbO3 Intensity Modulator 10G

Incazelo emfushane:

I-modulator ye-LiNbO3 isetshenziswa kabanzi ohlelweni lokuxhumana lwe-optical olusheshayo, ukuzwa nge-laser kanye nezinhlelo ze-ROF ngenxa yokusebenza kahle kwe-electro-optic. Uchungechunge lwe-R-AM olusekelwe esakhiweni se-MZ push-pull kanye nomklamo we-X-cut, lunezici zomzimba ezizinzile nezamakhemikhali, ezingasetshenziswa kokubili ekuhlolweni kwelabhorethri kanye nezinhlelo zezimboni.


LANDA

Imininingwane Yomkhiqizo

I-Rofea Optoelectronics inikeza imikhiqizo ye-Optical kanye ne-photonics Electro-optic modulators

Amathegi Omkhiqizo

Isici

* Ukulahlekelwa okuphansi kokufakwa
* I-bandwidth ephezulu
* I-voltage ephansi yesigamu-igagasi
* Inketho yokwenza ngokwezifiso

I-modulator ye-electro-optic I-modulator ye-electro-optical I-modulator ye-LiNbO3 intensity ye-MZM I-Modulator ye-Mach-Zehnder I-modulator ye-LiNbO3 I-modulator ye-Lithium niobate

Isicelo

⚫ Izinhlelo ze-ROF
⚫ Ukusatshalaliswa kokhiye we-Quantum
⚫ Izinhlelo zokuzwa nge-laser
⚫ Ukuguqulwa kwebhendi eseceleni

I-RofUchungechunge lwe--AM

I-Rof-AM-07

I-Rof-AM-08

I-Rof-AM-10

I-Rof-AM-13

  I-Rof-AM-15
Ubude besikhathi obusebenzayo

780nm

850nm

1064nm

1310nm

1550nm
Ububanzi bomkhawulo

10GHz

10GHz

10/20I-GHz

2.5GHz

50I-GHz

10GHz

20GHz

40GHz
Ukulahlekelwa Kokufakwa

＜5dB

＜5dB

＜5dB

     ＜5dB

＜4dB
Isilinganiso sokuphela @DC

＞20dB

＞20dB

＞20dB

＞20dB

＞20dB
VΠ @RF (1KHz)

<3V

<3V

＜4V

<3.5V

＜6V

<5V
VΠ @Ubandlululo

＜3.5V

＜3.5V

＜5V

<5V

 <8V

<7V

Ulwazi Loku-oda

I-Rof AM XX XXG XX XX XX
Uhlobo: AM--Intensity Modulator Ubude begagasi:

07---780nm
08---850nm

10--1060nm

13---1310nm

15---1550nm

 Ububanzi be-bandwidth:

10GHz

20GHz

40GHz

50GHz



 I-Monitor PD:

I-PD---Nge-PD
00 --- Ayikho i-PD

 Uhlobo lwe-Fiber oluphumayo: PP--PM/PM Isixhumi se-Optical：FA---FC/APCFP---FC/PC

Ukwenza ngokwezifiso i-SP--

R-AM-07-10G

I-Wavaleth engu-710nm 10GHz Intensity modulator

Ipharamitha

Uphawu

Ubuncane

Uhlobo

Ubuningi

Iyunithi
Amapharamitha okukhanya
Ubude besikhathi obusebenzayo

l

760

780

800

nm
Ukulahleka kokufakwa

IL



4.5

5

dB
Ukulahleka kokubuya kokukhanya

I-ORL



-45

dB
Isilinganiso sokuphela kwe-Switch @DC

ER@DC

20

23



dB
I-fiber ebonakalayo

Okokufakaichweba



PM780ifayibha (125/250μm)

imbobo yokuphuma



PM780ifayibha (125/250μm)
Isixhumi esibonakalayo sefayibha yokukhanya

I-FC/PC, i-FC/APC Noma Ukwenza Ngokwezifiso
Amapharamitha kagesi
I-bandwidth yokusebenza(I-1965)-3dB）

S21

10

12



I-GHz
I-Vpi ye-voltage engamagagasi ayisithupha RF @1KHz

2.5

3

V
Ukubandlulula @1KHz

3

4

V
Ukulahleka kokubuya kukagesi

S11



-12

-10

dB
Ukuvimba kokufaka RF

ZRF

50

W
Ukubandlulula

ZI-BIAS

1M

W
Isixhumi esibonakalayo sikagesi

I-SMA(f)

Imibandela Yomkhawulo

Ipharamitha

Uphawu

Iyunithi

Ubuncane

Uhlobo

Ubuningi
Amandla okufaka optical

Pku-, Max

i-dBm

20
Amandla e-RF okufaka

i-dBm

28
i-voltage ekhethayo

Ama-Vbias

V

-15

15
Izinga lokushisa lokusebenza

Phezulu

℃

-10

60
Izinga lokushisa lesitoreji

I-Tst

℃

-40

85
Umswakama

RH

%

5

90

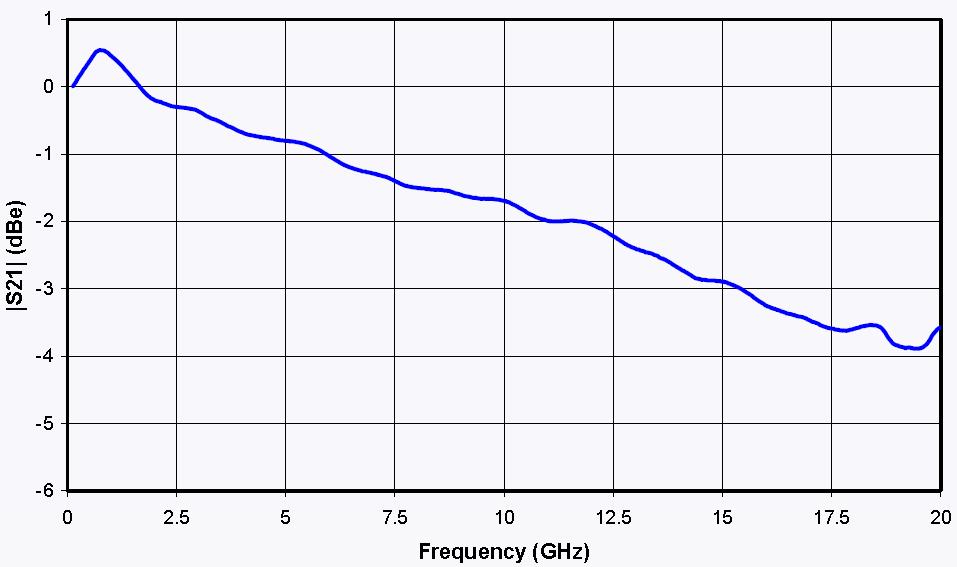

Ijika le-S21

i-pd-1

Ijika le-&S11

i-pd-2

Amajika e-S21 ne-s11

Umdwebo Wemishini

i-pd-3

I-PORT

Uphawu

Inothi
Ku-

Imbobo yokufaka ebonakalayo

I-PM Fiber (125μm/250μm)
Phumile

Imbobo yokuphuma ebonakalayo

Inketho ye-PM kanye ne-SMF
RF

Imbobo yokufaka ye-RF

I-SMA(f)
Ukubandlulula

Imbobo yokulawula ekhethayo

Ukubandlulula okungu-1,2, okungu-34-N/C
