Isilawuli Sokubandlulula Esizenzakalelayo Se-IQ Modulator
Isici
•Ihlinzeka ngezindlela ezintathu zokubandlulula ama-IQ modulators. Ifomethi yokuguquguquka ezimele:
•Kuqinisekisiwe i-QPSK, i-QAM, i-OFDM, i-SSB
•Xhuma bese udlala:
Akukho ukulinganisa ngesandla okudingekayo Konke okuzenzakalelayo
•I, izingalo ze-Q: ukulawula kumamodi e-Peak kanye ne-Null Isilinganiso sokuphela okuphezulu: 50dB max1
•Ingalo ye-P: ukulawula kumamodi e-Q+ kanye ne-Q- Ukunemba: ± 2◦
•Iphrofayili ephansi: 40mm(W) × 28mm(D) × 8mm(H)
•Ukuqina okuphezulu: ukusetshenziswa kwedijithali ngokugcwele Kulula ukuyisebenzisa:
•Ukusebenza ngesandla nge-mini jumper Ukusebenza kwe-OEM okuguquguqukayo nge-UART2
•Izindlela ezimbili zokuhlinzeka ngama-voltage e-bias: a.Ukulawula i-Bias okuzenzakalelayo b.I-voltage ye-bias echazwe ngumsebenzisi
Isicelo
•I-LiNbO3 kanye nezinye izimodulators ze-IQ
• I-QPSK, i-QAM, i-OFDM, i-SSB nokunye
•Ukudluliselwa Okuvumelanayo
Ukusebenza

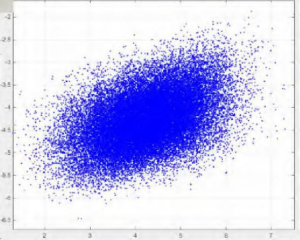

Umfanekiso 1. Inkanyezi (ngaphandle kwesilawuli)
Umfanekiso 2. I-QPSK Constellation (enesilawuli)

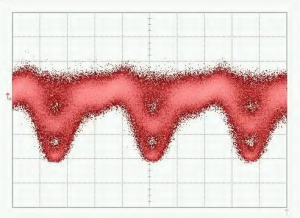

Umfanekiso 3. Iphethini ye-QPSK-Eye
Umfanekiso 5. Iphethini yezinkanyezi ezingu-16-QAM
Isithombe 4. I-QPSK Spectrum
Umfanekiso 6. I-Spectrum ye-16-QAM
Imininingwane
| Ipharamitha | Ubuncane | Uhlobo | Ubuningi | Iyunithi |
| Ukusebenza Kokulawula | ||||
| Izingalo ze-I, Q zilawulwa kuI-Null (Okungenani) nomaIsiqongo (Ubuningi) iphuzu | ||||
| Isilinganiso sokuphela | I-MER1 | 50 | dB | |
| Ingalo ye-P ilawulwa ku-Umbuzo+(kwesokudla) i-quadrature) nomaQ-( kwesobunxele i-quadrature) iphuzu | ||||
| Ukunemba ku-Quad | −2 | +2 | izinga2 | |
| Isikhathi sokuzinza | 15 | 20 | 25 | s |
| Ugesi | ||||
| I-voltage yamandla enhle | +14.5 | +15 | +15.5 | V |
| Amandla wamanje amahle | 20 | 30 | mA | |
| I-voltage yamandla engalungile | -15.5 | -15 | -14.5 | V |
| Amandla wamanje angalungile | 8 | 15 | mA | |
| Ububanzi bamandla okukhipha | -14.5 | +14.5 | V | |
| Ukuphakama kwe-Dither | 1%Vπ | V | ||
| Optical | ||||
| Amandla okufaka optical3 | -30 | -8 | i-dBm | |
| I-wavelength yokufaka | 1100 | 1650 | nm | |
1. I-MER ibhekisela ku-Modulator Extinction Ratio. Isilinganiso sokuphela esifinyelelwayo ngokuvamile siyisilinganiso sokuphela kwe-modulator esichazwe kudatha ye-modulator.
2. Sicela uqaphele ukuthi amandla okukhanya okufakwayo awahambisani namandla okukhanya endaweni ekhethiwe ye-bias. Kubhekisela emandleni okukhanya aphezulu kakhulu i-modulator engawathumela kumlawuli lapho i-bias voltage isukela ku-−Vπ kuya ku-+Vπ.
I-Interface Yomsebenzisi
Umfanekiso 5. Ukuhlanganiswa
| Iqembu | Ukusebenza | Incazelo |
| Setha kabusha | Faka i-jumper bese uyikhipha ngemva komzuzwana owodwa | Setha kabusha isilawuli |
| Amandla | Umthombo wamandla wesilawuli se-bias | I-V- ixhuma i-electrode engemihle yokunikezwa kwamandla |
| I-V+ ixhuma i-electrode enhle yokunikezwa kwamandla | ||
| Imbobo ephakathi ixhuma ne-electrode yomhlabathi | ||
| I-Polar1 | I-PLRI: Faka noma khipha i-jumper | akukho jumper: Imodi ye-Null; enejumper: Imodi ye-Peak |
| I-PLRQ: Faka noma khipha i-jumper | akukho jumper: Imodi ye-Null; enejumper: Imodi ye-Peak | |
| I-PLRP: Faka noma khipha i-jumper | akukho jumper: Imodi ye-Q+; nge-jumper: Imodi ye-Q- | |
| I-LED | Kuhlala kuvuliwe | Ukusebenza ngaphansi kwesimo esizinzile |
| Kuvaliwe noma kuvaliwe njalo ngemizuzwana engu-0.2 | Ukucubungula idatha nokusesha indawo yokulawula | |
| Kuvaliwe noma kuvaliwe njalo ngemizuzwana eyi-1 | Amandla okufaka optical abuthakathaka kakhulu | |
| Kuvuliwe noma kuvaliwe njalo ngemizuzwana emi-3 | Amandla okufaka optical aqine kakhulu | |
| I-PD2 | Xhumana ne-photodiode | I-PD port ixhumanisa i-Cathode ye-photodiode |
| Imbobo ye-GND ixhumanisa i-Anode ye-photodiode | ||
| Ama-Bias Voltages | Ngaphakathi, i-Ip: I-voltage ye-Bias yengalo ye-I | Ip: Uhlangothi oluhle; Ku: Uhlangothi olubi noma phansi |
| I-Qn, i-Qp: I-voltage ye-Bias yengalo ye-Q | Qp: Uhlangothi oluhle; Umbuzo: Uhlangothi olubi noma umhlabathi | |
| I-Pn, i-Pp: I-voltage ye-Bias yengalo ye-P | I-Pp: Uhlangothi oluhle; I-Pn: Uhlangothi olubi noma umhlabathi | |
| I-UART | Sebenzisa isilawuli nge-UART | 3.3: I-voltage yokubhekisela engu-3.3V |
| I-GND: Phansi | ||
| I-RX: Ukwamukelwa kwesilawuli | ||
| TX: Ukudluliselwa kwesilawuli |
1 I-Polar incike esignalini ye-RF yesistimu. Uma kungekho signalini ye-RF ohlelweni, i-polar kufanele ibe yi-positive. Uma isignali ye-RF inobukhulu obukhulu kunezinga elithile, i-polar izoshintsha isuka ku-positive iye ku-negative. Ngalesi sikhathi, iphuzu le-Null kanye nephuzu le-Peak zizoshintshana. Iphuzu le-Q+ kanye nephuzu le-Q- nazo zizoshintshana. I-Polar switch ivumela umsebenzisi ukushintsha i-polar
ngqo ngaphandle kokushintsha izindawo zokusebenza.
2Kuzokhethwa ukhetho olulodwa kuphela phakathi kokusebenzisa i-photodiode yokulawula noma ukusebenzisa i-photodiode yokulawula. Kunconywa ukusebenzisa i-photodiode yokulawula ekuhlolweni kwelebhu ngezizathu ezimbili. Okokuqala, i-photodiode yokulawula iqinisekisile izimfanelo. Okwesibili, kulula ukulungisa ubukhali bokukhanya kokufaka. Uma usebenzisa i-photodiode yangaphakathi yomlawuli, sicela uqiniseke ukuthi ugesi wokukhipha we-photodiode ulingana ngokuphelele namandla okufaka.
